What is an Aerial Work Platform Truck?

An aerial work platform truck (also known as a truck-mounted aerial lift or cherry picker) is a specialized vehicle designed to safely lift workers, tools, and materials to elevated work sites. It combines a standard truck chassis with a hydraulic lifting system and a work platform, making it highly mobile and versatile for jobs at height.

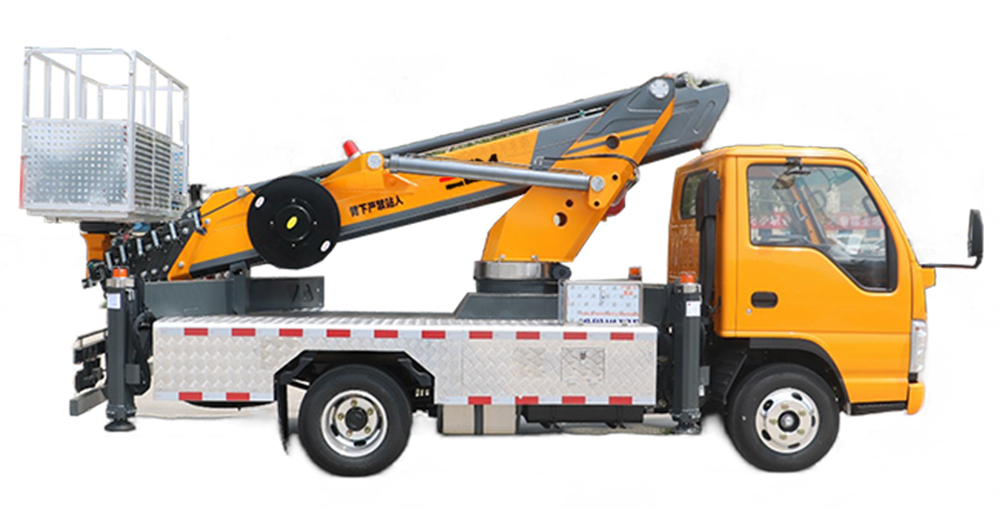

Key Components (as shown in the image)

• Truck Chassis: Provides mobility, allowing the vehicle to drive to job sites on public roads.

• Hydraulic Knuckle Boom / Telescopic Arm: The articulated, extendable arm that lifts the platform to the desired height. This design offers great flexibility to reach over obstacles and work in tight spaces.

• Work Platform / Basket: The enclosed, safety-railed platform at the end of the arm, where operators stand to perform tasks.

• Outriggers: Stabilizing legs that extend from the truck to the ground, ensuring stability and preventing tipping during lifting operations.

• Control System: Allows precise, smooth control of the boom’s movement, platform leveling, and other functions, usually from both the truck cab and the platform itself.

Common Applications

These trucks are essential for a wide range of industries:

• Building Maintenance: Window cleaning, painting, facade repairs, and roof work.

• Utilities & Infrastructure: Power line maintenance, streetlight repair, and telecommunications installation.

• Construction: Installing signage, HVAC systems, or exterior cladding on new buildings.

• Event & Emergency Services: Setting up event lighting, rescue operations, and accessing hard-to-reach areas during emergencies.

Key Advantages

• Mobility: Can be driven directly to the work site, eliminating the need for heavy transport.

• Flexibility: The articulated boom can reach up, over, and around obstacles, providing access to areas that fixed scaffolding cannot.

• Safety: Equipped with fall protection, load limits, and stability controls to protect workers at height.

• Efficiency: Enables quick setup and teardown, reducing downtime compared to traditional scaffolding.

Typical Specifications

• Working Height: Ranges from 10 meters (33 ft) to over 40 meters (131 ft), depending on the model.

• Platform Capacity: Usually 200–300 kg (440–660 lbs), enough for 1–2 workers plus tools.

• Drive Type: Most are diesel or electric-powered, suitable for both urban and industrial environments.

In short, the aerial work platform truck is a safe, efficient, and mobile solution for all kinds of work that needs to be done high above the ground.
